UTP Cat6 Cable

  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • 4 pair twisted copper cable
  • Conductor: 23 AWG solid copper
  • Insulator: PE
  • Outer jacket: available in PE/PVC/LSZH/ FR(Fire Retardant) PVC
  • Incorporates central spine to maintain pair separation during installation to ensure premium performance after installation.
  • suitable for indoor installation
  • Supplied in convenient 305m “Reel in a box”
  • Operating Temperature: 0- 70 degree C
  • Operating bandwidth: 250 MHz
  • Suitable for Voice, Data, Video, BMS, PoE
  • UL listed, CM rated, RoHS compliant
  • Compliant to EIA/TIA 568-C.2, Cat6 and ISO/IEC A1801 Class E cable specification

FTP(Foiled Twisted Pair) or F/UTP Cat6 Cable

  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • Support growing requirement for shielded cabling systems
  • 4 pair twisted copper cable
  • Conductor: 23 AWG solid copper
  • Insulator: PE
  • Shielding: Aluminium foil
  • Outer jacket: available in PE/PVC/LSZH/ FR- PVC
  • Incorporates central spine maintaining pair separation during installation to ensure premium performance after installation.
  • Suitable for indoor & outdoor installation
  • Supplied in convenient 305m “Reel in a box”
  • Operating Temperature: 0- 70 degree C
  • Bandwidth: 250 MHz
  • Suitable for Voice, Data, Video, PoE,BMS
  • UL listed, CM rated, RoHS compliant
  • Compliant to EIA/TIA 568-C.2, Cat6 and ISO/IEC A1801 Class E cable specification

STP(Shielded Twisted Pair) or S/FTP Cat6 Cable

  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • Support growing requirement for shielded cabling systems
  • 4 pair twisted copper cable
  • Conductor: 23 AWG solid copper
  • Insulator: PE
  • Shielding: tinned copper braiding with Aluminium foil
  • Outer jacket – available in PE/LSZH/ Fire Retardant(FR) PVC
  • Incorporates central spine maintaining pair separation during installation to ensure premium performance after installation.
  • Suitable for indoor & outdoor installation
  • Supplied in convenient 305m “Reel in a box”
  • Operating Temperature: 0- 70 degree C
  • Bandwidth: 250 MHz
  • Suitable for Voice, Data, Video, PoE,BMS
  • UL listed, CM rated, RoHS compliant
  • Compliant to EIA/TIA 568-C.2, Cat6 and ISO/IEC A1801 Class E cable specification

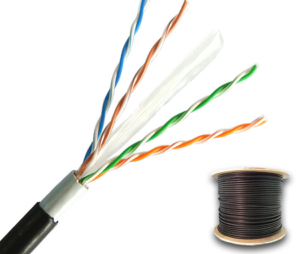

Outdoor UTP Cat6 Cable

  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • 4 pair twisted copper cable
  • Conductor: 23 AWG solid copper
  • Insulator: PE
  • UV resistant LDPE outer jacket with PE/PVC sheathed UTP
  • Incorporates central spine maintaining pair separation during installation to ensure premium performance after installation.
  • suitable for outdoor installation
  • Supplied in convenient 305m “Reel in a box”
  • Operating Temperature: -20 to +60 degree C
  • Operating bandwidth: 250 MHz
  • Suitable for Voice, Data, Video, PoE,BMS
  • UL listed, RoHS compliant
  • Compliant to EIA/TIA 568-C.2, Cat6 and ISO/IEC A1801 Class E cable specification

UTP Cat6 RJ45 outlet/ Keystone Jack

  • RJ45 8P8C Jack
  • Terminating 4 pairs, 22-24 AWG cable
  • RJ45 contact material: phosphor bronze with 50 micron gold plating
  • IDC contact material: phosphor bronze with tin plated
  • 45 degree angled IDC connector for fatigue free cable termination
  • color-coded for T568A and T568B wiring schemes
  • suitable for face plate, patch panel
  • UL Listed and ETL Verified

STP Cat6 Keystone Jack/ RJ45 outlet

  • 360 degree shielded RJ45 8P8C Jack
  • Terminating 4 pairs, 22-24 AWG cable
  • Housing: tin plated brass/ zinc alloy
  • RJ45 contact material: phosphor bronze with 50 micron gold plating
  • IDC : phosphor bronze with tin plated material
  • 45 degree angled IDC connector for fatigue free cable termination
  • Spring loaded  shutter to protect from dust & moisture when not in use
  • color-coded for T568A and T568B wiring schemes
  • suitable for face plate, patch panel
  • UL Listed and ETL Verified

Patch/Jack Panel – 12/16/24/48 port

  • 19” rack mount modular patch panel
  • Aluminium body, powder coated
  • Suitable for UTP & STP RJ45 keystone jack
  • Efficient cable management

Field terminated Cat6 RJ45 connector

  • RJ45 8P8C re-useable Jack
  • Terminating 4 pairs, 22-24 AWG cable
  • IDC : phosphor bronze with tin plated material
  • RJ45 contact material: phosphor bronze with 50 micron gold plating
  • Unique PCB circuit board design reduces EMI/RFI interference
  • colour-coded for T568A and T568B wiring schemes
  • fast and reliable termination saves labor costs and installation time
  • suitable for UTP, STP solid/ stranded copper cable

UTP/STP Cat6 Patch cord

  • 4 pair 24-26 AWG stranded copper wire
  • Pre-terminated & factory moulded with RJ45 plugs
  • Strain relief boot–  straight/angular
  • angular design RJ45 connector to protect from snapping out
  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • Suitable for EIA 568A or 568B wiring
  • Outer jacket: FR-PVC
  • Heat Resistance: 60 degree C
  • Insertion Cycles: 750 times
  • UL Listed and ETL Verified

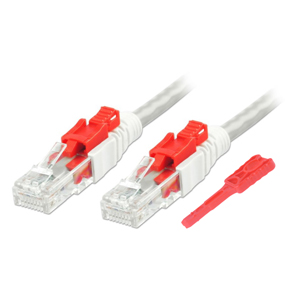

UTP/STP Cat6 Patch cord with Lock & Key

  • 4 pair 24-26 AWG stranded copper wire
  • Pre-terminated & factory moulded with RJ45 plugs
  • Suitable for wall outlet, patch panel, laptop, firewall, server of all brands
  • Features strain relief boots with a plug latch protection
  • Key lock protection to avoid any link failure
  • Supports Gigabit Ethernet (1000 Base-T and 1000 Base-TX)
  • Suitable for EIA 568A or 568B wiring
  • Outer jacket: FR-PVC
  • Heat Resistance: 60 degree C
  • Insertion Cycles: 750 times
  • UL Listed and ETL Verified

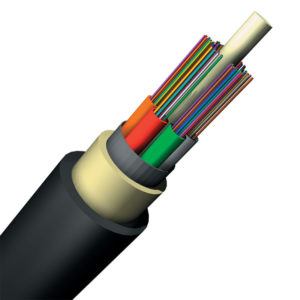

Outdoor armored Singlemode Fiber cable

  • Suitable for indoor /outdoor applications
  • Support 04-24 core 9/125 micron singlemode fiber
  • totally non-metallic construction ensures lightning immunity
  • Sustained reliability over a wide temperature range
  • Central loose tube with petroleum jelly used as water blocking material
  • Easily removable rugged jacket through rip cord
  • Outer jacket: HDPE
  • FRP (fibre reinforced plastic) strength members
  • Attenuation: <0.35dB/km @ 1310nm; <0.22dB/km @ 1550nm
  • 1Gb, 10 Gb, 40Gb, 100Gb Ethernet support over long distance
  • Compliance: ISO : 11801; IEC : 60793-1 / 60794 -1-2; ITU-T : REC G.652D standards

Fiber & Power Composite Cable

  • includes 4 core Singlemode fiber and 2 core 1.5sq. mm. power cable
  • suitable for outdoor CCTV & similar installation
  • provides power & connectivity through a single fiber & power hybrid cable
  • saves cost of separate conduit & laying
  • conforms to industry standards

Fiber Patch panel/ LIU

  • Aluminum base material for light weight
  • 19” rack mount or wall mount type
  • Available in 12-48 core configurations with SC/LC/FC adapter
  • Removable front and rear covers for better access
  • Pre-assembled with couplers, splice tray & pigtails for splicing and terminations

Fiber Patch Cord –Singlemode/ Multimode

  • Duplex tight buffered fibersinglemode OS2 / multimode OM2, OM3, OM4
  • Machine polished connectors provides low insertion loss & high return loss
  • Complies G652D,G657A,G657B, TIA/EIA & IEC standards
  • LSZH outer jacket
  • Ferrule Material: Zirconium Ceramic
  • Available with various connector combinations – LC/SC/ST/FC

Armored Fiber Patch Cord –Singlemode/ Multimode

  • Duplex tight buffered fiber- singlemode OS2 / multimode OM2, OM3, OM4
  • Machine polished connectors provides low insertion loss & high return loss
  • Complies G652D,G657A,G657B, TIA/EIA & IEC standards
  • LSZH outer jacket
  • Helical stainless steel mesh protects delicate patch cord from physical damage
  • Ferrule Material: Zirconium Ceramic
  • Available with various connector combinations – LC/SC/ST/FC
  • Suitable for Armed forces, FTTx and harsh environments
